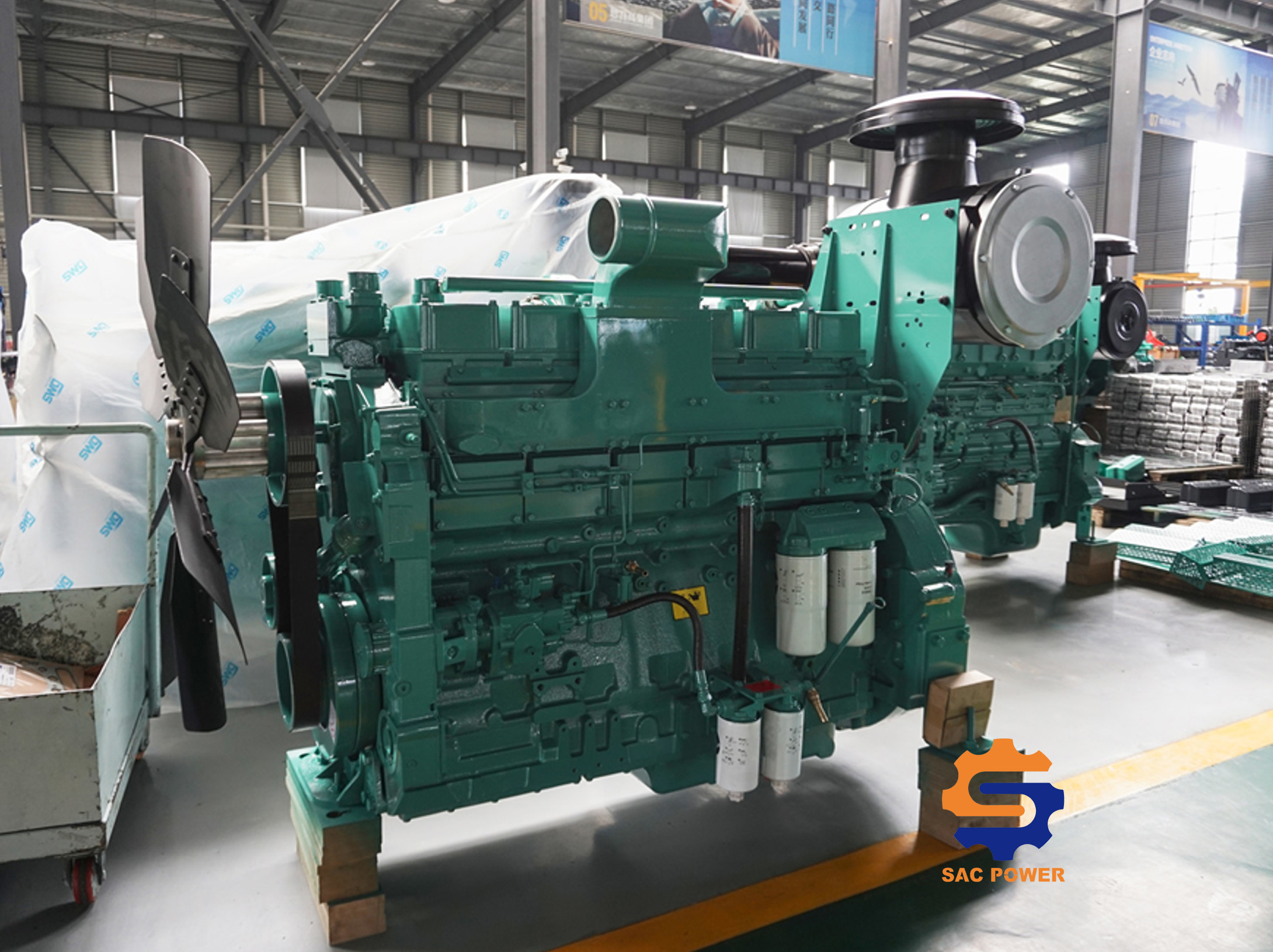

Cummins KTAA19-G6A Diesel Engine

Cummins KTAA19-G6A Diesel Engine

1. Basic parameter

Engine Model: Cummins / SWG KTAA19-G6A

Engine Features: In-line, 6 Cylinders, Four-stroke

Rate Power: 550KW /1500rpm

Standby Power: 610KW /1500rpm

Displacement: 18.9L

Bore*Stroke: 159*159 mm

Compression Ratio: 13:1

Mode of Speed Regulation: Electronic

Net Weight: 1905 KG

Over Dimension: 2142×966×1730 mm (with air filter, without fan)

2. Exhaust Air System

Exhaust air capacity     : 148.68 m3/min

Exhaust air temperature: 446℃

Max. exhaust back pressure: 10kPa

3. Air Intake System

Air Intake Type: Turbocharged, Air/Air cooling

Max. Air Intake Pressure: 6.23kPa

Air Combustion Capacity: 51m3/min

Air flow: 900m3/min

4. Fuel System

Fuel Consumption: 216g/KW.h or 151.6L/h (100% loading)

5. Lubrication System

Oil Capacity: 50 L

Oil Consumption: ≤4g/KW.h

Oil Pan Capacity: 32~38 L

Rated Speed Oil Pressure: 345- 483kPa

6. Cooling System

Cooling Type: Closed Water-Cooling

Total Cooling Liquid Capacity: 116.5 L

Thermostat Working Temperature: 82-93℃

Max. Water Temperature: 104 ℃

More details or need others Diesel Engine, contact us please. Email: tongyi@sac-power.com.
