Cummins KTA38-G2/KTA38-G2A

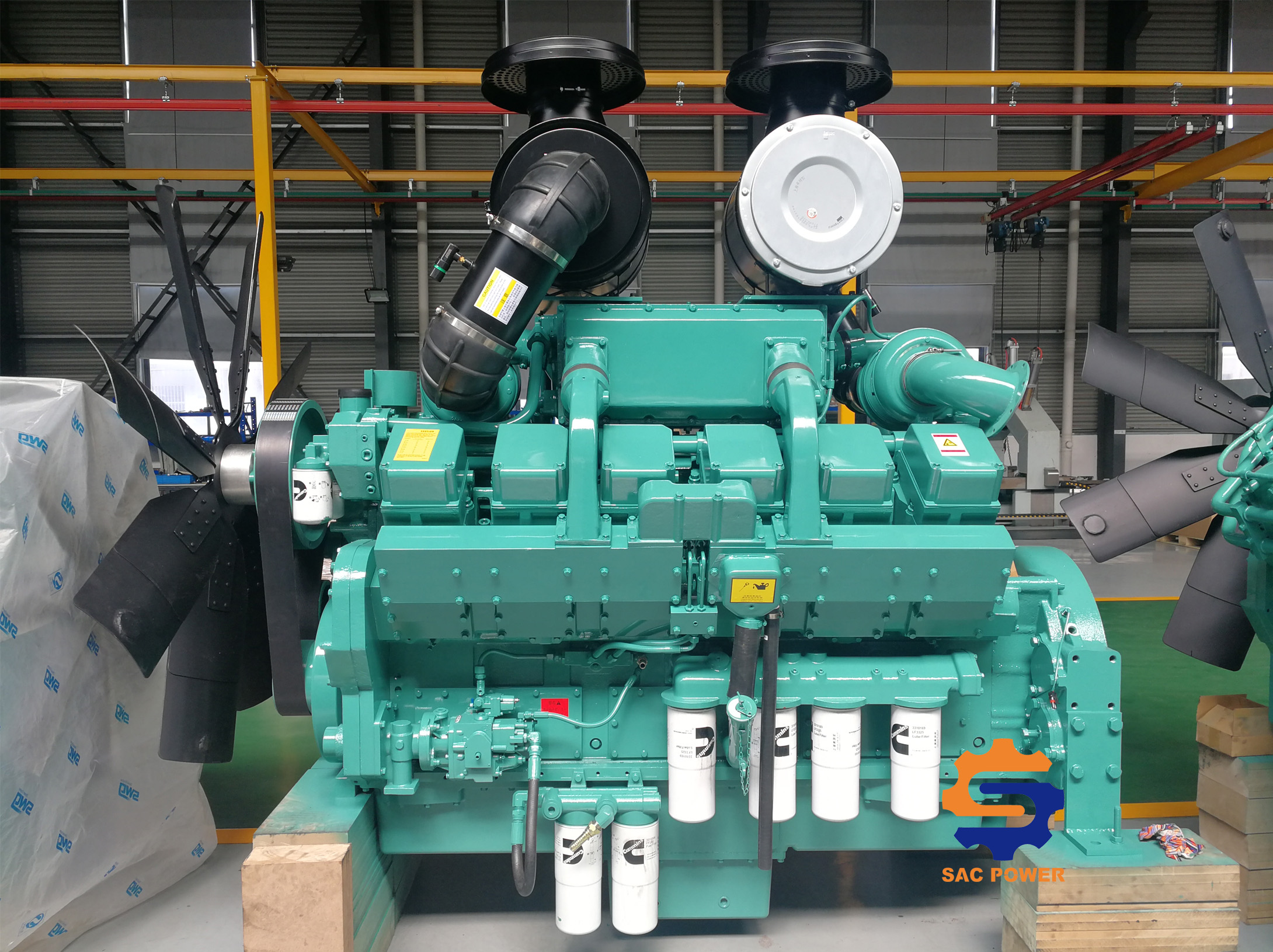

Cummins Diesel Engine KTA38-G2 / KTA38-G2A

1. Basic parameter

Engine Model：Cummins & SWG KTA38-G2

Engine Features：V type, 12 Cylinders, Four-stroke

Rated Power：664KW /1500rpm

Standby Power：731KW /1500rpm

Displacement：37.8L

Bore*Stroke：159*159 mm

Compression Ratio：14.5:1

Mode of Speed Regulation：Electronic

2. Exhaust Air System

Exhaust air capacity     ：158.04 m³/min

Exhaust air temperature：552 ℃

Max. exhaust back pressure：10 kPa

3. Air Intake System

Air Intake Type：Turbocharged, Water-air cooling

Max. Air Intake Pressure：6.23 kPa

Air Combustion Capacity：55.2 m³/min

Air flow：1140m3/min

4. Fuel System

Fuel Consumption：214g/KW.h (100% loading) (166.7L/h)

5. Lubrication System

Oil Capacity：135 L

Oil Consumption：≤4g/KW.h

Oil Pan Capacity：121-151 L

Rated Speed Oil Pressure：310-448 kPa

6. Cooling System

Cooling Type：Closed Water-Cooling

Total Cooling Liquid Capacity：252 L

Thermostat Working Temperature：82-93 ℃

Max. Water Temperature：104 ℃

More details or need others Diesel Engine, contact us please. Email: tongyi@sac-power.com.
