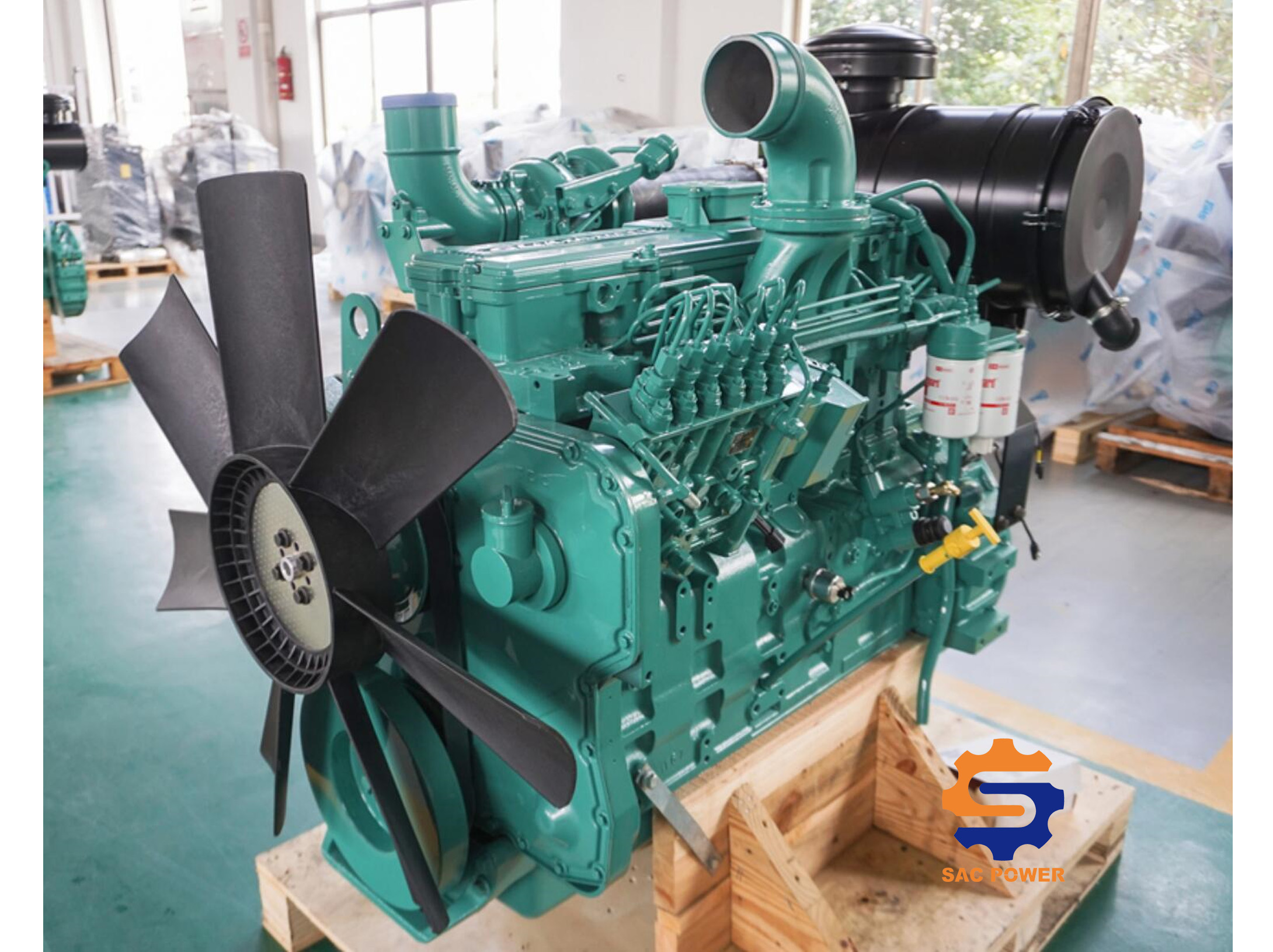

Cummins 6LTAA8.9-G2 Diesel Engine

Cummins 6LTAA8.9-G2 Diesel Engine

1. Basic parameter

Engine Model: Cummins 6LTAA8.9-G2

Engine Features: In-line, 6 Cylinders, Four-stroke

Rate Power: 218KW/1500rpm

Standby Power: 240KW/1500rpm

Displacement: 8.9L

Bore*Stroke: 114*145 mm

Compression Ratio: 16.6:1

Mode of Speed Regulation: Electronic

Net Weight: 650 KG

Over Dimension: 1240*780*1185 mm

2. Exhaust Air System

Exhaust air capacity     : 38 m3/min

Exhaust air temperature: 470℃

Max. exhaust back pressure: 10.1 kPa

3. Air Intake System

Air Intake Type: Turbocharged, Air-Air cooling

Max. Air Intake Pressure: 6.2 kPa

Air Combustion Capacity: 15.2 m3/min

Air flow: 326 m3/min

4. Fuel System

Fuel Consumption: 197g/KW.h or 50L/h (100% loading)

5. Lubrication System

Oil Capacity: 27.6 L

Oil Consumption: ≤4g/KW.h

Oil Pan Capacity: 24L

Rated Speed Oil Pressure: 276 - 414 kPa

6. Cooling System

Cooling Type: Closed Water-Cooling

Total Cooling Liquid Capacity: 41 L

Thermostat Working Temperature: 82-93℃

Max. Water Temperature: 104 ℃

More details or need others Diesel Engine, contact us please. Email: tongyi@sac-power.com.
