Cummins KTA19-G4

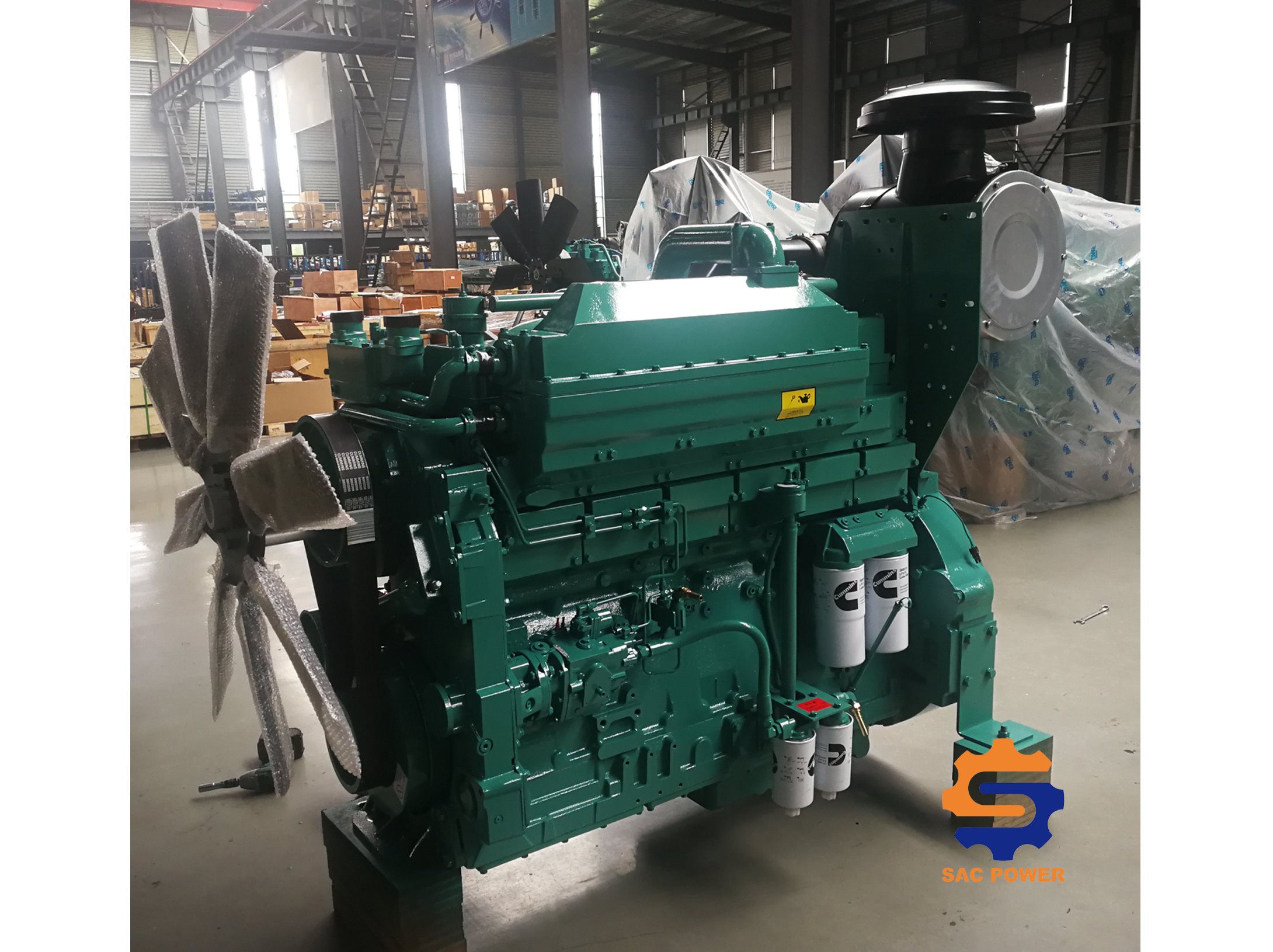

Cummins Diesel Engine KTA19-G4

1. Basic parameter

Engine Model: Cummins/SWG KTA19-G4

Engine Features: In-line, 6 Cylinders, Four-stroke

Rate Power: 448KW /1500rpm

Standby Power: 504KW /1500rpm

Displacement: 19L

Bore*Stroke: 159*159 mm

Compression Ratio: 13.9:1

Mode of Speed Regulation: Electronic

Net Weight: 1855 KG

Over Dimension: 2142×880×1734 mm (with air filter, without fan)

2. Exhaust Air System

Exhaust air capacity: 96.24m3/min

Exhaust air temperature: 557℃

Max. exhaust back pressure: 10kPa

3. Air Intake System

Air Intake Type: Turbocharged, Water-Air cooling

Max. Air Intake Pressure: 6.23kPa

Air Combustion Capacity: 34.74m3/min

Air flow: 900m3/min

4. Fuel System

Fuel Consumption: 203g/KW.h or 104.7L/h (100% loading)

5. Lubrication System

Oil Capacity: 50 L

Oil Consumption: ≤4g/KW.h

Oil Pan Capacity: 32~38 L

Rated Speed Oil Pressure: 345- 483kPa

6. Cooling System

Cooling Type: Closed Water-Cooling

Total Cooling Liquid Capacity: 100 L

Thermostat Working Temperature: 82-93℃

Max. Water Temperature: 104 ℃
